Two factor authentication for Citrix NetScaler Gateway



The LoginTC RADIUS Connector is a complete two-factor authentication virtual machine packaged to run within your corporate network. The LoginTC RADIUS Connector enables Citrix NetScaler to use LoginTC for the most secure two-factor authentication.

User Experience

There are a wide variety of authentication mechanism users can use to perform MFA with Citrix Gateway/ADC/NetScaler product suite.

• Push Number Matching
• Software OTP
• Hardware OTP
• U2F Token
• Passcode Grid

Video Instructions Architecture

Authentication Flow

1. A user attempts access with username / password
2. The username / password is verified against an existing first factor directory (LDAP, Active Directory or RADIUS)
3. A RADIUS authentication request is sent to the LoginTC RADIUS Connector
4. An authentication request is made to LoginTC Cloud Services
5. Secure push notification request sent to the user’s mobile or desktop device
6. User response (approval or denial of request) sent to LoginTC Cloud Services
7. The LoginTC RADIUS Connector polls until the user responds or a timeout is reached
8. RADIUS Access-Accept sent back to Citrix NetScaler
9. User is granted access to Citrix NetScaler

Compatibility

Citrix NetScaler compatibility:

• Citrix NetScaler 10.0+ (Including MPX, VPX and SDX appliances)

Prerequisites

Before proceeding, please ensure you have the following:

• LoginTC Admin Panel account
• Computer virtualization software such as VMware ESXi, VirtualBox, or Hyper-V
• Virtual Machine requirements:
  • 1024 MB RAM
  • 8 GB disk size

Create Application

Start by creating a LoginTC Application for your deployment. An Application represents a service (e.g. An application is a service (e.g., VPN or web application) that you want to protect. e) that you want to protect with LoginTC.

Create a LoginTC Application in LoginTC Admin Panel, follow Create Application Steps.

If you have already created a LoginTC Application for your deployment, then you may skip this section and proceed to Installation.

Installation

1. Download the latest LoginTC RADIUS Connector:
   • OVF for ESXi, VirtualBox
   • VHD for Hyper-V
2. Unzip the file
3. Import the virtual appliance your computer virtualization software
   • Instructions for Hyper-V
4. Ensure that the LoginTC RADIUS Connector has a virtual network card
5. Start the virtual appliance
6. You will be presented with a console dashboard:
7. The first thing you must do is set the logintc-user password:
8. By default the appliance network is configured by DHCP. If you wish to manually configure the network, use the Down arrow key to navigate to Network Configuration and DNS Configuration
9. For access to the web interface select Web Server and then Start:It may take 5-10 seconds to start the first time:
10. Once started, access the web interface by navigating to the URL mentioned in the information box:

The LoginTC RADIUS Connector runs CentOS 7.7 with SELinux. A firewall runs with the following open ports:

Port	Protocol	Purpose
22	TCP	SSH access
1812	UDP	RADIUS authentication
1813	UDP	RADIUS accounting
8888	TCP	Web interface
443	TCP	Web interface
80	TCP	Web interface
80	TCP	Package updates (outgoing)
123	UDP	NTP, Clock synchronization (outgoing)

Configuration for Citrix Two Factor Authentication

Configuration describes how the appliance will authenticate your RADIUS-speaking device with an optional first factor and LoginTC as a second factor. Each configuration has 4 Sections:

1. LoginTC

This section describes how the appliance itself authenticates against LoginTC Admin Panel with your LoginTC Application. Only users that are part of your organization and added to the domain configured will be able to authenticate.

2. First Factor

This section describes how the appliance will conduct an optional first factor. Either against an existing LDAP, Active Directory or RADIUS server. If no first factor is selected, then only LoginTC will be used for authentication.

3. Passthrough

This section describes whether the appliance will perform a LoginTC challenge for an authenticating user. The default is to challenge all users. However with either a static list or Active Directory / LDAP Group you can control whom gets challenged to facilitate seamless testing and rollout.

4. Client and Encryption

This section describes which RADIUS-speaking device will be connecting to the appliance and whether to encrypt API Key, password and secret parameters.

The web interface makes setting up a configuration simple and straightforward. Each section has a Test feature, which validates each input value and reports all potential errors. Section specific validation simplifies troubleshooting and gets your infrastructure protected correctly faster.

First Configuration

Close the console and navigate to your appliance web interface URL. Use username logintc-user and the password you set upon initial launch of the appliance. You will now configure the LoginTC RADIUS Connector.

Create a new configuration file by clicking + Create your first configuration:

LoginTC Settings

Configure which LoginTC Application to us:

Configuration values:

Property	Explanation
Application ID	The 40-character Application ID, retrieve Application ID
Application API Key	The 64-character Application API Key, retrieve Application API Key
Request Timeout	Number of seconds that the RADIUS connector will wait for

The Application ID and Application API Key are found on the LoginTC Admin Panel.

Click Test to validate the values and then click Next:

First Authentication Factor

Configure the first authentication factor to be used in conjunction with LoginTC. You may use Active Directory / LDAP or an existing RADIUS server. You may also opt not to use a first factor, in which case LoginTC will be the only authentication factor.

Active Directory / LDAP Option

Select Active Directory if you have an AD Server. For all other LDAP-speaking directory services, such as OpenDJ or OpenLDAP, select LDAP:

Configuration values:

Property	Explanation	Examples
host	Host or IP address of the LDAP server	ldap.example.com or 192.168.1.42
port (optional)	Port if LDAP server uses non-standard (i.e., 389/636)	4000
bind_dn	DN of a user with read access to the directory	cn=admin,dc=example,dc=com
bind_password	The password for the above bind_dn account	password
base_dn	The top-level DN that you wish to query from	dc=example,dc=com
attr_username	The attribute containing the user’s username	sAMAccountName or uid
attr_name	The attribute containing the user’s real name	displayName or cn
attr_email	The attribute containing the user’s email address	mail or email
Group Attribute (optional)	Specify an additional user group attribute to be returned the authenticating server.	4000
RADIUS Group Attribute (optional)	Name of RADIUS attribute to send back	Filter-Id
LDAP Group (optional)	The name of the LDAP group to be sent back to the authenticating server.	SSLVPN-Users
encryption (optional)	Encryption mechanism	ssl or startTLS
cacert (optional)	CA certificate file (PEM format)	/opt/logintc/cacert.pem

Click Test to validate the values and then click Next.

Existing RADIUS Server Option

If you want to use your existing RADIUS server, select RADIUS:

Configuration values:

Property	Explanation	Examples
host	Host or IP address of the RADIUS server	radius.example.com or 192.168.1.43
port (optional)	Port if the RADIUS server uses non-standard (i.e., 1812)	1812
secret	The secret shared between the RADIUS server and the LoginTC RADIUS Connector	testing123

Click Test to validate the values and then click Next.

Passthrough

Configure which users will be challenged with LoginTC. This allows you to control how LoginTC will be phased in for your users. This flexibility allows for seamless testing and roll out.

For example, with smaller or proof of concept deployments select the Static List option. Users on the static list will be challenged with LoginTC, while those not on the list will only be challenged with the configured First Authentication Factor. That means you will be able to test LoginTC without affecting existing users accessing your VPN.

For larger deployments you can elect to use the Active Directory or LDAP Group option. Only users part of a particular LDAP or Active Directory Group will be challenged with LoginTC. As your users are migrating to LoginTC your LDAP and Active Directory group policy will ensure that they will be challenged with LoginTC. Users not part of the group will only be challenged with the configured First Authentication Factor.

No Passthrough (default)

Select this option if you wish every user to be challenged with LoginTC.

Static List

Select this option if you wish to have a static list of users that will be challenged with LoginTC. Good for small number of users.

LoginTC challenge users: a new line separated list of usernames. For example:

            jane.doe
            jane.smith
            john.doe
            john.smith

Active Directory / LDAP Group

Select this option if you wish to have only users part of a particular Active Directory or LDAP group to be challenged with LoginTC. Good for medium and large number of users.

Configuration values:

Property	Explanation	Examples
LoginTC challenge auth groups	Comma separated list of groups for which users will be challenged with LoginTC	SSLVPN-Users or two-factor-users
host	Host or IP address of the LDAP server	ldap.example.com or 192.168.1.42
port (optional)	Port if LDAP server uses non-standard (i.e., 389/636)	4000
bind_dn	DN of a user with read access to the directory	cn=admin,dc=example,dc=com
bind_password	The password for the above bind_dn account	password
base_dn	The top-level DN that you wish to query from	dc=example,dc=com
attr_username	The attribute containing the user’s username	sAMAccountName or uid
attr_name	The attribute containing the user’s real name	displayName or cn
attr_email	The attribute containing the user’s email address	mail or email
encryption (optional)	Encryption mechanism	ssl or startTLS
cacert (optional)	CA certificate file (PEM format)	/opt/logintc/cacert.pem

Click Test to validate the values and then click Next.

Client and Encryption

Configure RADIUS client (e.g. your Citrix NetScaler):

Client configuration values:

Property	Explanation	Examples
name	A unique identifier of your RADIUS client	CorporateVPN
ip	The IP address of your RADIUS client (e.g. your RADIUS-speaking VPN)	192.168.1.44
secret	The secret shared between the LoginTC RADIUS Connector and its client	bigsecret

The Authenticate Mode must be set to Iframe.

Click Test to validate the values and then click Save.

Testing

When you are ready to test your configuration, create a LoginTC user (if you haven’t already done so). The username should match your existing user. Provision a token by following the steps:

1. In a new tab / window log into the LoginTC Admin Panel
2. Click Domains
3. Click on your domain
4. Click on Members
5. Click Issue Token button beside your user:
6. A 10-character alphanumeric activation code will appear beside the user:
7. Open the LoginTC mobile app.
8. Enter the 10-character alphanumeric activation code:
9. Load the token to complete the process

When you have loaded a token for your new user and domain, navigate to your appliance web interface URL:

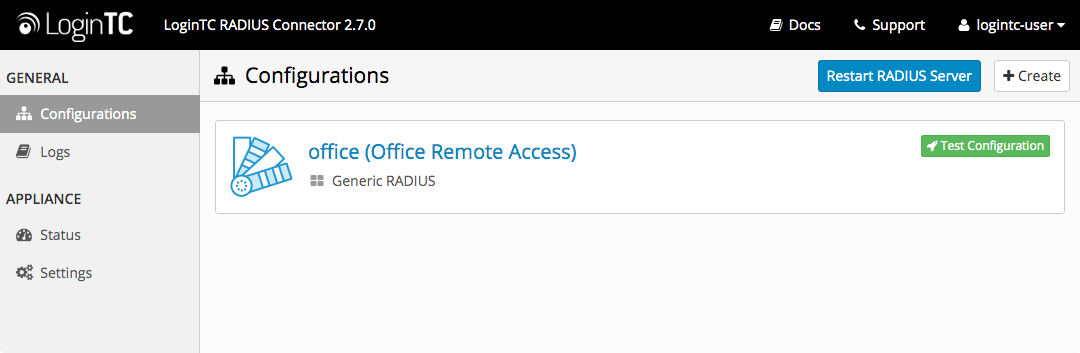

Click Test Configuration:

Enter a valid username and password; if there is no password leave it blank. A simulated authentication request will be sent to the mobile or desktop device with the user token loaded. Approve the request to continue:

Congratulations! Your appliance can successfully broker first and second factor authentication. The only remaining step is to configure your RADIUS device!

If there was an error during testing, the following will appear:

In this case, click See logs and then click the /var/log/logintc/authenticate.log tab to view the log file and troubleshoot:

Citrix NetScaler Configuration

Once you are satisfied with your setup, configure your Citrix NetScaler to use the LoginTC RADIUS Connector.

For your reference, the appliance web interface Settings page displays the appliance IP address and RADIUS ports:

The following are quick steps to set up Citrix NetScaler with LoginTC.

1. Log into the Citrix NetScaler admin web panel
2. Navigate to Authentication > Dashboard:
3. Press the add button:
4. Fill in the table


   Property	Description
   Choose Server Type	Select RADIUS
   Name	Choose a name for this authentication server
   Server Name/IP	Enter the LoginTC RADIUS Connector FQDN or IP address
   Port	Enter 1812
   Server Key	Enter the RADIUS client secret that you chose on the LoginTC RADIUS Connector
   Confirm Secret Key	Confirm the secret
   Time-out	Enter 95

5. Press Create
6. Navigate to NetScaler Gateway > Virtual Servers
7. Select your virtual server and press Edit
8. Press the + button in the Basic Authentication section:
9. Select Primary as the type:
10. Press Continue
11. Press the + button in the Policy Binding section or select an existing policy:
12. Configure your policy for the RADIUS server. Note that you may have to adjust your existing authentication policy so a user or group of users can only authenticate with RADIUS
13. Press Done
14. Press Bind:
15. Connect to your Citrix NetScaler over SSH:
16. Run command: shell
17. Run command: cd /netscaler/ns_gui/vpn
18. Create a backup of nsshare.js file: cp nsshare.js nsshare.js.bkp
19. Open file nsshare.js for editing: vi nsshare.js
20. Scroll down to the DialogueBodyII() function:
21. Scroll down to the bottom of the DialogueBodyII() function and insert the Citrix Integration snippet (https://www.logintc.com/downloads/citrix-code-snippet-v1-app.txt):

                //
                // Start of LoginTC Citrix Integration
                //
                var logintc_host = 'cloud.logintc.com';
                var logintc_application_id = 'YOUR_APPLICATION_ID';
                document.writeln('<script src="https://' + logintc_host + '/static/iframe/citrix-iframe-injector-v2.js"></script>');
                document.writeln('<script>if (typeof logintc !== \'undefined\') { logintc.iframe.init({host: "' + logintc_host + '", applicationId: "' + logintc_application_id + '"}); }</script>');
                //
                // End of LoginTC Citrix Integration
                //

    Ensure that you have entered your Application ID in the Citrix Integration snippet, retrieve Application ID

22. To persist these changes between reboots run commands: cp /netscaler/ns_gui/vpn/nsshare.js /var/vpn/vpn/nsshare.js and cp /netscaler/ns_gui/vpn/nsshare.js.bkp /var/vpn/vpn/nsshare.js.bkp

Your NetScaler is now configured to use the LoginTC RADIUS Connector for authentication.

Testing Citrix MFA Logon

1. The user is presented with the normal username/password prompt:
2. After correctly entering your username and password, the user is prompted with LoginTC authentication options:
3. When authenticating with LoginTC Push, the user is informed to check their device to approve the LoginTC request:
4. The user is brought to the VPN landing page after successfully authenticating:

Loading Balancing and Health Monitoring

Citrix NetScaler allows for multiple LoginTC RADIUS Connectors to be load balanced for high availability.

Steps to configure a health check monitoring user on the LoginTC RADIUS Connector:

1. From the LoginTC RADIUS Connector web based administration page logon using logintc-user
2. Click Configurations
3. Click on your configuration
4. Scroll down to Client Settings and click Edit
5. Ensure the IP Address matches the correct IP Address. May need to create a new configuration dedicated to monitoring if the health check IP Address does not match the IP Address RADIUS authentication calls originate from.
6. Scroll down to Enable Monitoring User and select Yes, enable a monitoring user

7. Enter a Monitoring Username that matches the configured monitor in Citrix
8. Click Test to validate the values and then click Save.

When health checks requests are received for the monitoring user, the configured First Factor authentication will be checked and LoginTC verification will automatically passthrough. If First Factor authentication passes ACCESS-ACCEPT will be returned.

User Management

There are several options for managing your users within LoginTC:

• Individual users can be added manually in LoginTC Admin Panel
• Bulk operations using CSV Import
• Programmatically manage user lifecycle with the REST API
• One-way user synchronization of users to the LoginTC Admin is performed using User Sync Tool.

Logging

Logs can be found on the Logs tab:

Troubleshooting

Not Authenticating

If you are unable to authenticate, navigate to your appliance web interface URL and click Status:

Ensure that all the status checks pass. For additional troubleshooting, click Logs:

Upgrading

From 3.X

Follow these instructions to upgrade your LoginTC RADIUS virtual appliance to the latest version (3.0.7):

1. SSH into the virtual appliance or open the console (use same username / password as web GUI)
2. cd /tmp
3. curl -O https://www.logintc.com/downloads/logintc-radius-connector-3.0.7-upgrade.sh
4. sudo sh logintc-radius-connector-3.0.7-upgrade.sh

The upgrade script will restart your appliance after upgrading.

From 2.X

Complete 2.X to 3.X upgrade guide: LoginTC RADIUS Connector Upgrade Guide
